Enclosed model 3PUK 54 1,0-50kVA

Voltages freely max 750V. Currents freely max 30A. When higher voltages or currents are required, the extreme dimensions may change depending on the connector type. With this structure, chokes can also be manufactured. More detailed information is available from our sales.

Production version

S (kva)	enclosure	a (mm)	b (mm)	c (mm)	D (mm)	h (mm)	Ø (mm)	m (kg)
1	3PUK54 132-150	500	380	190	340	550	12x18	40
1,6	3PUK54 132-150	500	380	190	340	550	12x18	50
2	3PUK54 132-150	500	380	190	340	550	12x18	50
2,5	3PUK54 132-150	500	380	220	340	550	12x18	50
3	3PUK54 132-150	500	380	220	340	550	12x18	60
4	3PUK54 180-210	500	440	264	400	550	12x18	68
5	3PUK54 180-210	500	440	264	400	550	12x18	78
6	3PUK54 180-210	500	440	264	400	550	12x18	88
6,3	3PUK54 180-210	500	440	316	400	550	12x18	110
8	3PUK54 180-210	500	440	316	400	550	12x18	110
10	3PUK54 180-210	500	440	316	400	550	12x18	125
12,5	3PUK54 240	600	490	356	450	650	12x18	155
16	3PUK54 240	600	490	356	450	650	12x18	155
20	3PUK54 240	600	490	356	450	650	12x18	175
25	3PUK54 270-350	700	490	356	450	700	12x18	220
31,5	3PUK54 270-350	700	490	356	450	700	12x18	250
40	3PUK54 270-350	700	490	356	450	700	12x18	300
50	3PUK54 270-350	700	490	356	450	700	12x18	320

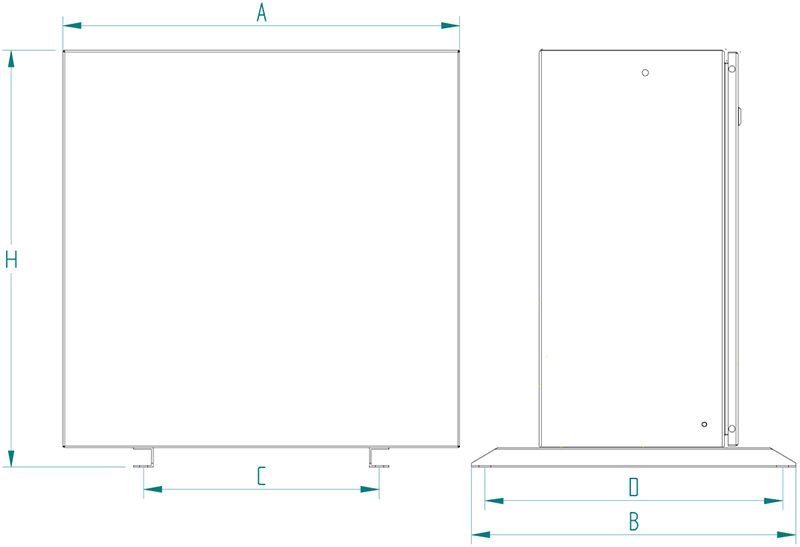

Technical drawings
